Custom Engineered Applications
By design, our company has flexibility to take standard models and convert them into custom equipment that can move material in and out of the sawing area. Discharge Ramp with Material Pusher

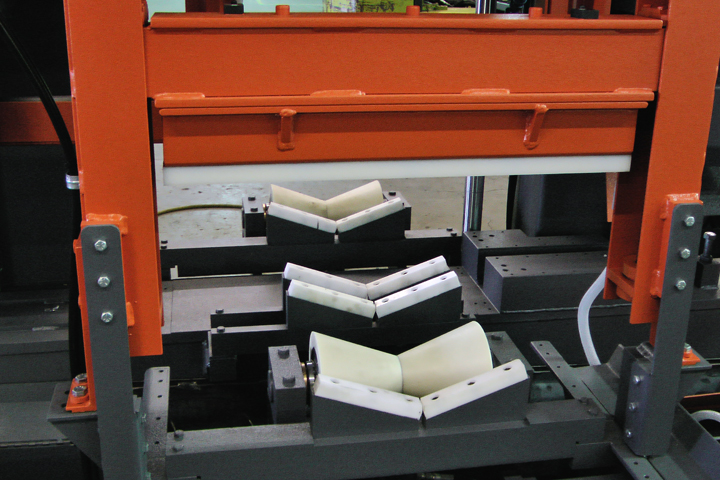

“V” Alignment Rollers
Description: These are designed for conveying and cutting rounds, such as tubing, pipe, and solids. They are a good choice when the horizontal datum (pass line height) is not critical, as the horizontal datum changes height with each diameter. Stainless Steel V-Rollers

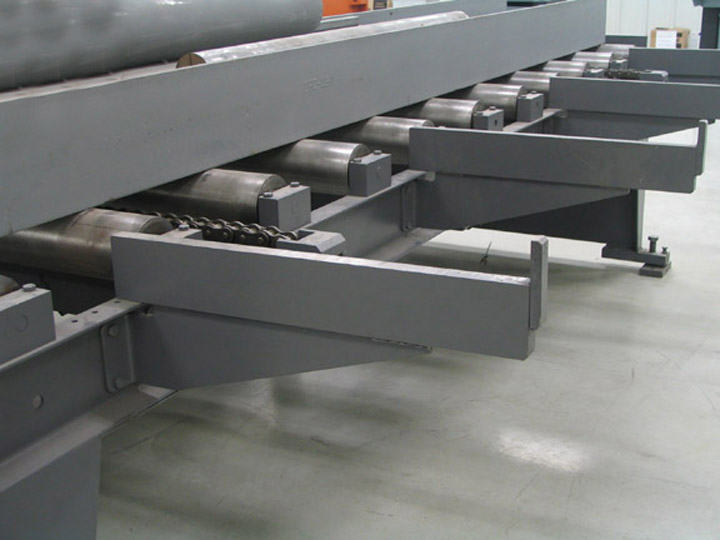

STATIC HOLDING ARM
Standard & heavy-duty Static Holding Arms are used to hold different weight duty cycles on the discharge side.

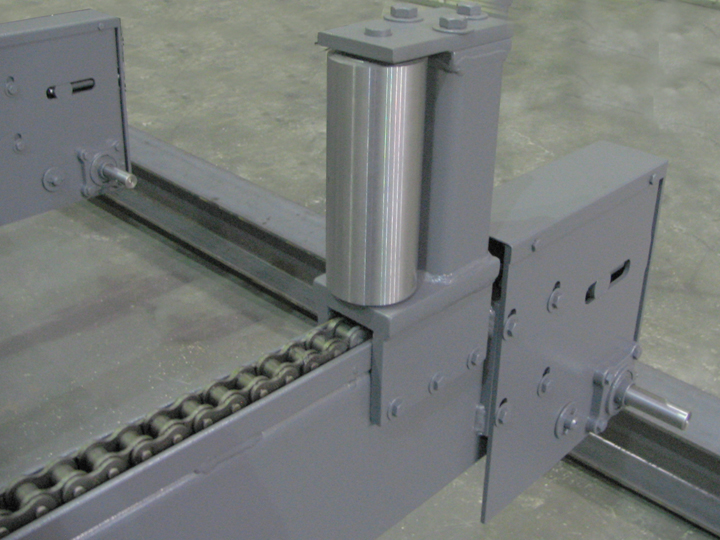

Continuous Chain Transfer System
Offered as the standard system with approximately 10′ of storage (minus width of the conveyor) Description: • Transfer arms lift, and material is transferred by continuous chain. • Transfer arms pivot from one end. • Up to 4,000 lbs static load per arm. • Storage capacity is 10’6” minus the width of the conveyor. • […]

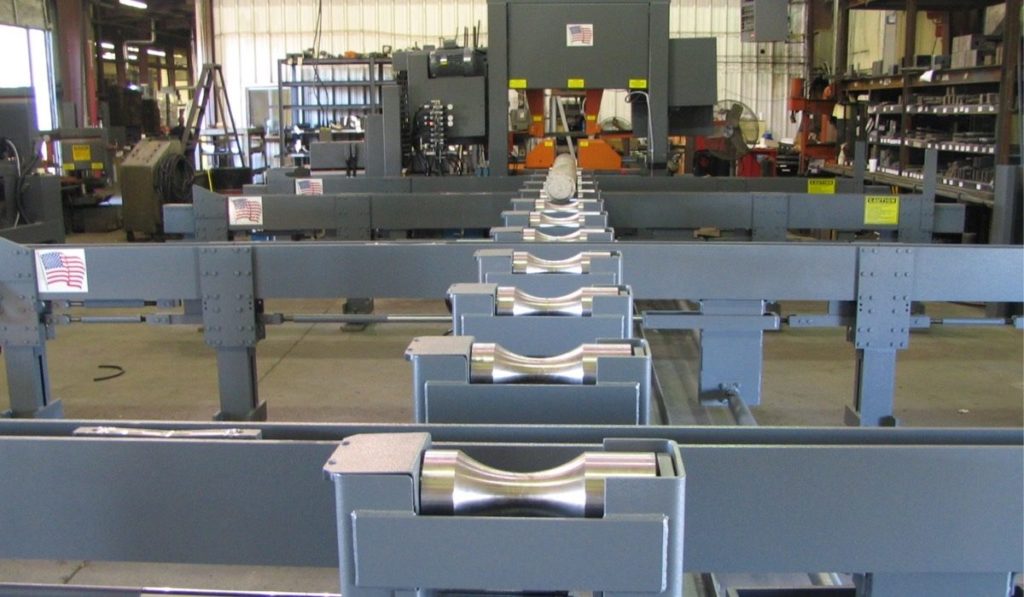

CONTOUR ALIGNMENT ROLLERS
For dedicated billet and pipe cutting applications HE&M offers machined contour rollers to keep rounds safely centered down the roller table line. The roller contours are designed to be effective with all diameters of pipe and solid rounds up to the capacity of the bandsaw.

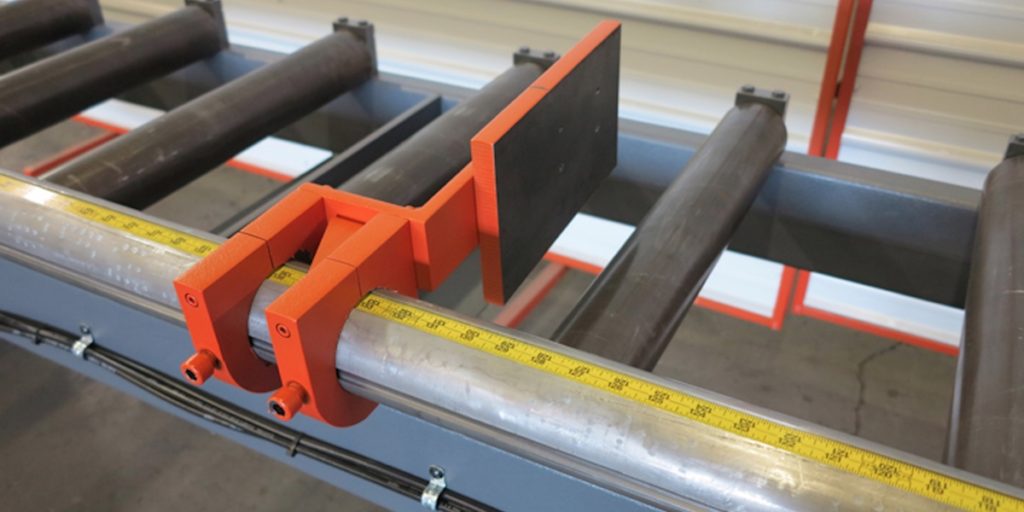

Standard-Duty Contact Measuring
For operations that only require a manually set material stop, we offer a standard duty measuring system that can be tightened at a specific point along a measuring tape and raised up or down for use. As with our other contact-style device, material can be run to the stop as a means to measure prior […]

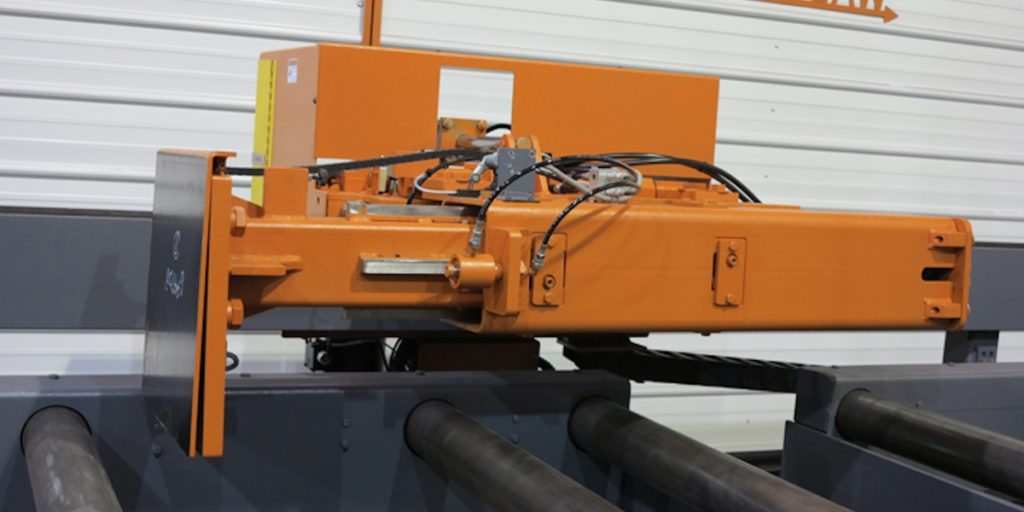

Heavy-Duty Contact Measuring
Our heavy-duty contact measuring systems allow steel fabrication and metal center operations to measure longer lengths using a programmable material length positioner to set a solid stop at a specific length and material to be moved down powered tabling until it hits the stop. When the material is moved to the stop position, it engages […]

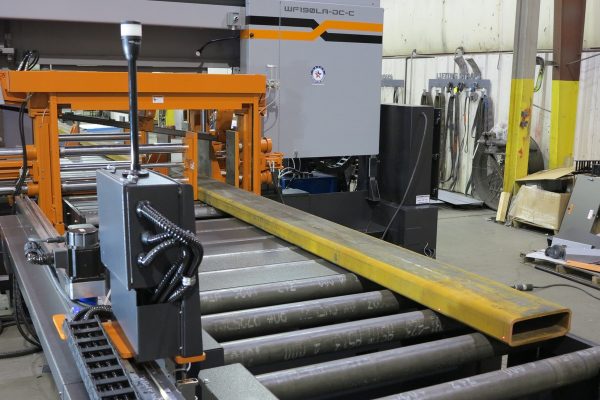

Non-Contact Measuring
HE&M Saw’s patented innovations have revolutionized steel fabrication and service center operations and our latest “Non-Contact Measuring System” is yet another example of moving the industry forward. Our new patented measuring system uses two levels of lasers to identify the front edge of material speeding down our powered tabling. The tables automatically slow and engage […]

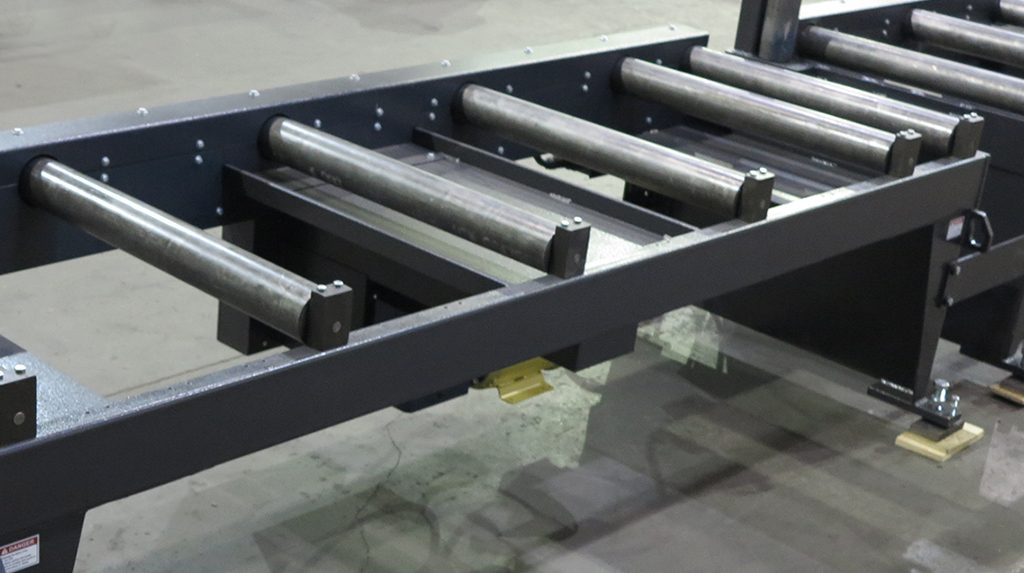

STAGE 2 CONVEYORS
Built for maximum weight, 6”O.D. x .500″ wall DOM tubing tight configuration rollers on heavy duty cast iron pillow blocks.

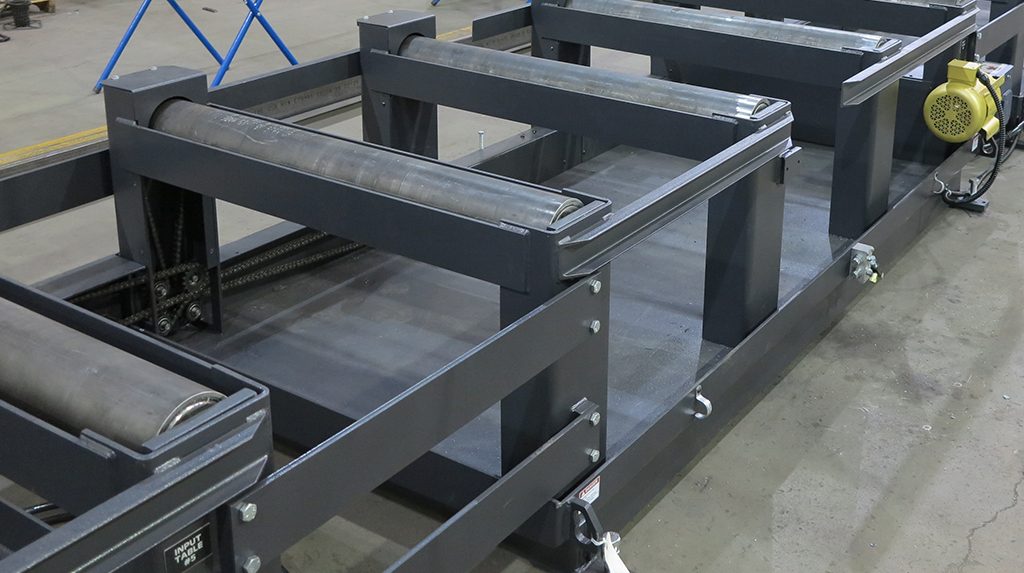

STAGE 3 CONVEYORS
Heavy duty DOM tubing rollers with Stage 5 hardened ground and sealed bearings powered in unison to smoothly move material. Stage III Conveyors are offered as either an idle conveyor or a powered conveyor. Roller Size: 5-6” diameter x .312” wall DOM tubing on 12”, 26″ or 36” Roller Centers (Roller Width is either 29”, 34″, […]
