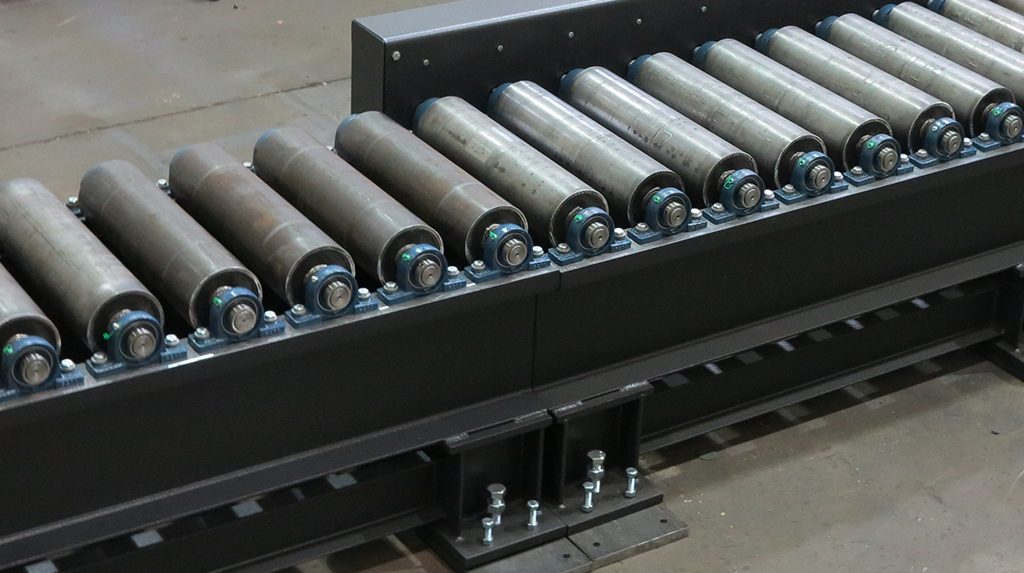

Built for maximum weight and tough environments. Stage IV Conveyors are offered as either an idle conveyor or a powered conveyor. Roller Size: 6” – 8” diameter x .50” wall DOM tubing on 8”, 16” or 36” Roller Centers (Roller Size and Width dependant on Saw Model. With widths varying from 29”, 34″, 40”, 46″, […]

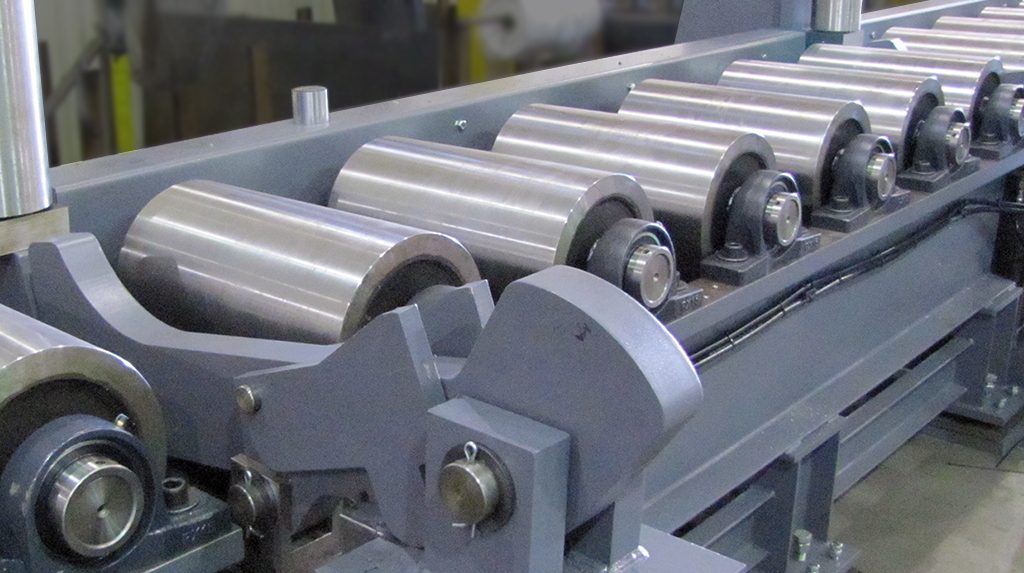

Customized powered extreme-duty conveyor systems. These tables designed for the heaviest loads, the toughest environments, and can be spring-loaded for better weight distribution. The roller size diameter is based on the application and can vary from 6″ – 12″ with the roller shafts mounted in pillow blocks for precision roller-to-roller alignment. The rollers can be […]

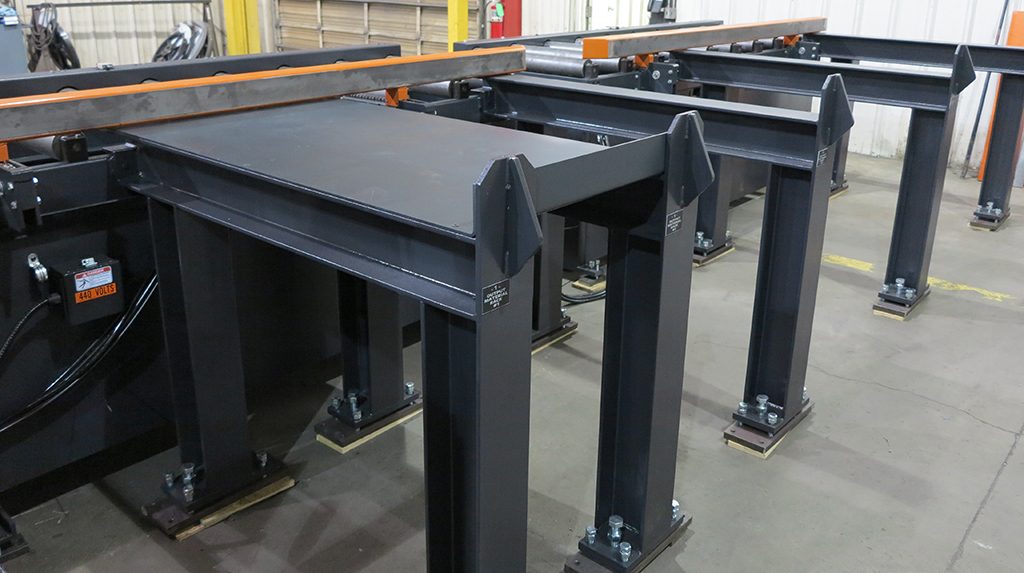

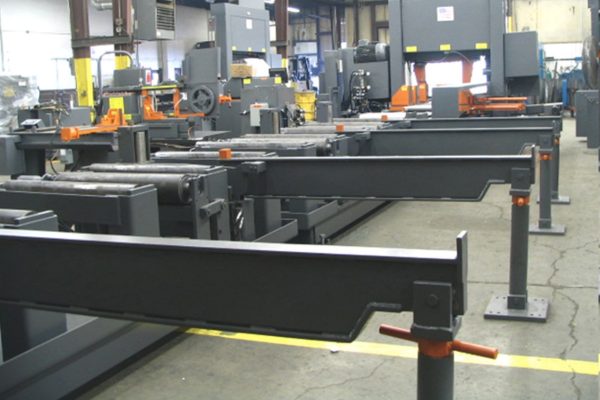

A set of Outriggers can be combined with our ejector bar system to maximize off-loading of materials from the cutting zone. The ejector bar can fully stroke materials to the far edge of the tabling without pushing materials off the edge, making it easier for workers to remove completed jobs from the table area.
A set of Outriggers can be combined with our ejector bar system to maximize off-loading of materials from the cutting zone. The ejector bar can fully stroke materials to the far edge of the tabling without pushing materials off the edge, making it easier for workers to remove completed jobs from the table area.

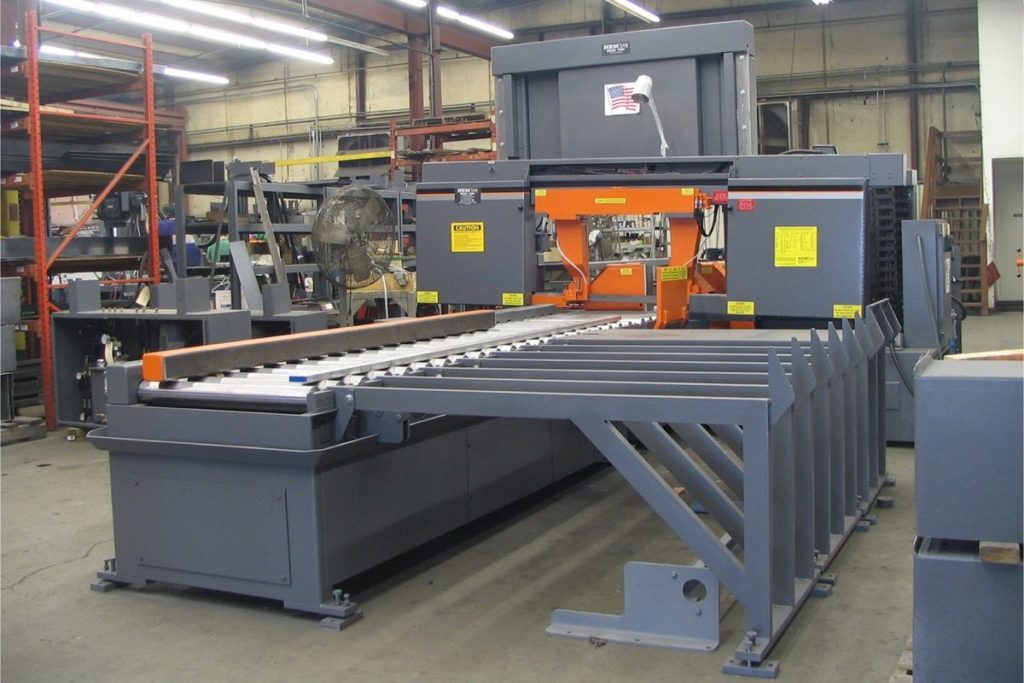

HE&M offers several types of Ejector Bar Systems to help operators move post-cut material from roller tables onto transfer arms or parts tables. Ejector bars are managed from the Main Control allowing for the mechanical movement of material, which adds another level of operator safety and productivity within your cutting operation.

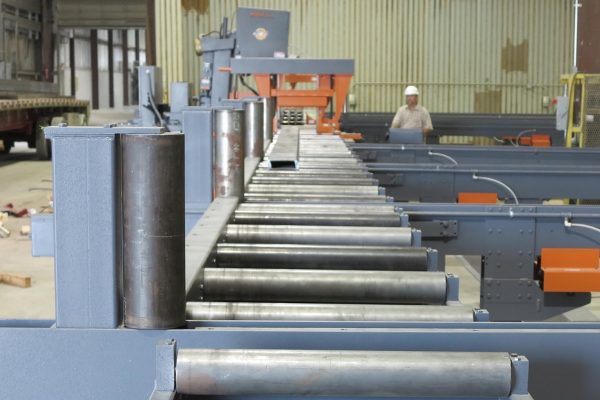

Heavy duty rollers do the important work of lining up material to the datum line for accurate cutting.

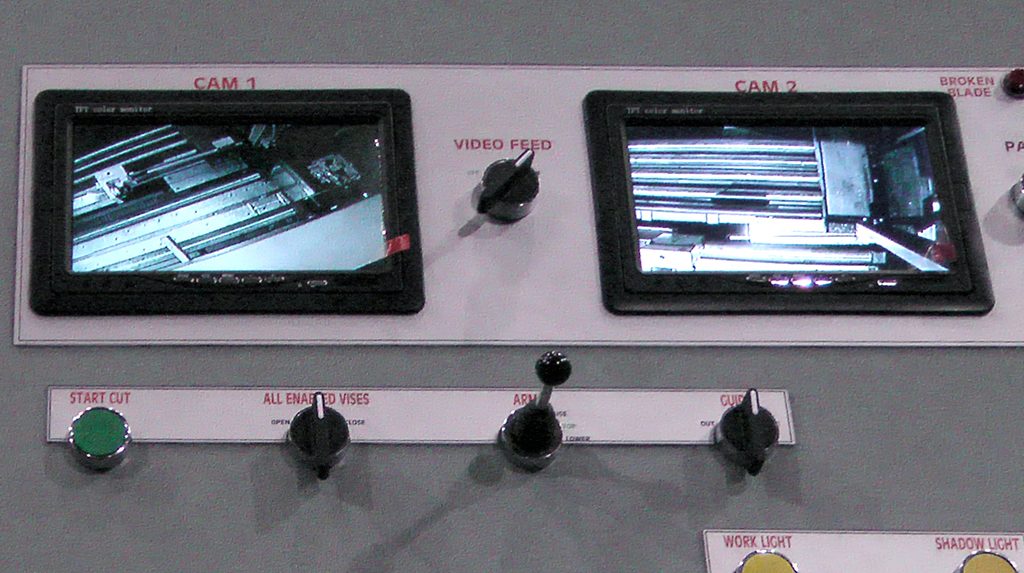

In cases where operators can use an extra set of eyes, HE&M offers a couple different types of video monitoring systems to help improve the safety of your material handling operation. Videos can be mounted on the main control or set-up as a swing away monitor.

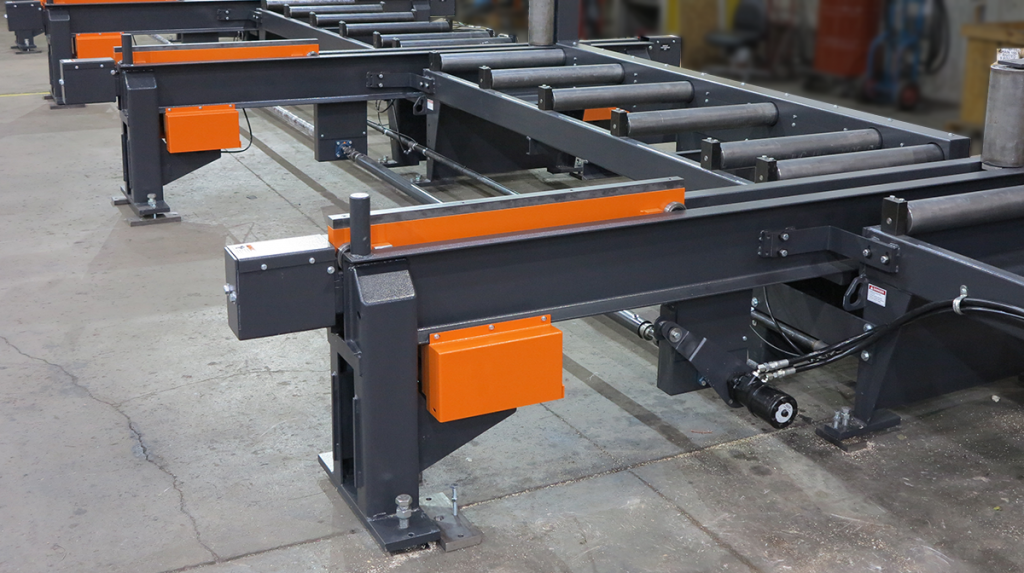

Offered as the standard 3 Leg System with 16′ of storage (minus width of the conveyor), or the 2 Leg System with 10′ of storage (minus width of the conveyor) Description: Transfer arms are constructed of heavy C10 x 20# steel channel side rails. The rails contain a lift and carry truck, between the rails, […]
